제품 상세정보
원래 장소: 중국
브랜드 이름: COWELL
모델 번호: YJ6202,6203
지불과 운송 용어
최소 주문 수량: 2
포장 세부 사항: 단단한 판지
배달 시간: 3-7 영업일
지불 조건: 티/티
재료: |
알루미늄, 플라스틱 |
크기: |
3" & 4" |
두께: |
28mm, 40mm, 50mm, 75mm |
재료: |
알루미늄, 플라스틱 |
크기: |
3" & 4" |
두께: |
28mm, 40mm, 50mm, 75mm |
Description

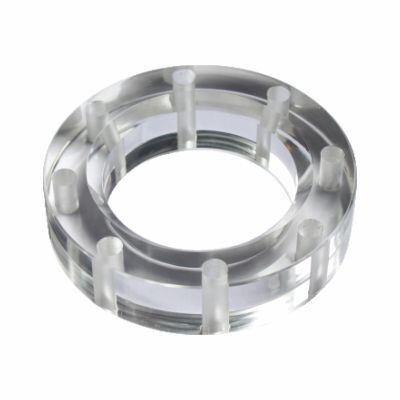

Sight glass flanges is installed between pipe outlet flange and API valve
to show if product is present and its color to confirm product identification.
The standard drilling is TTMA, different thickness is for your option.
Characteristics
Main material is made of plastic or aluminum
Can check the transferring liquid
Flange meets TTMA standard
Pressure to 3000KPa
Max. temperature 70℃
Material
Body: Aluminum alloy
Mirror: Glass
Seal: NBR
|
Technical Specification |
||||
|
Model |
YJ6202A |
YJ6202B |
YJ6203A |
YJ6203B |
|
Size |
3" |
4" |
3" |
4" |
|
Thickness |
28mm/40mm |
28mm/40mm |
50mm |
75mm |
|
Material |
Plastic | Plastic |
Aluminum |
Aluminum |
